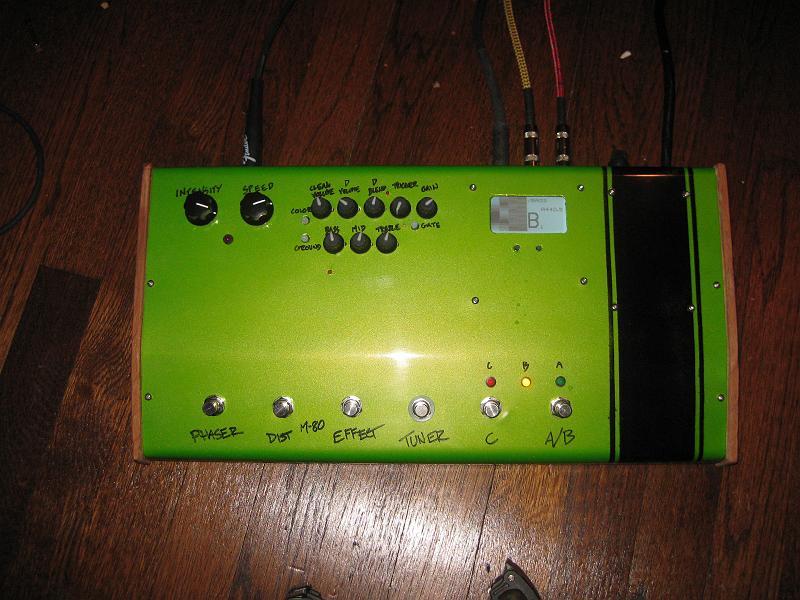

  Working.JPG - From above. A/B does what you would expect. C switches from whatever was active to the C input. The now-inactive A or B signal stays lit, so you know what you'll go back to.






From above. A/B does what you would expect. C switches from whatever was active to the C input. The now-inactive A or B signal stays lit, so you know what you'll go back to.
