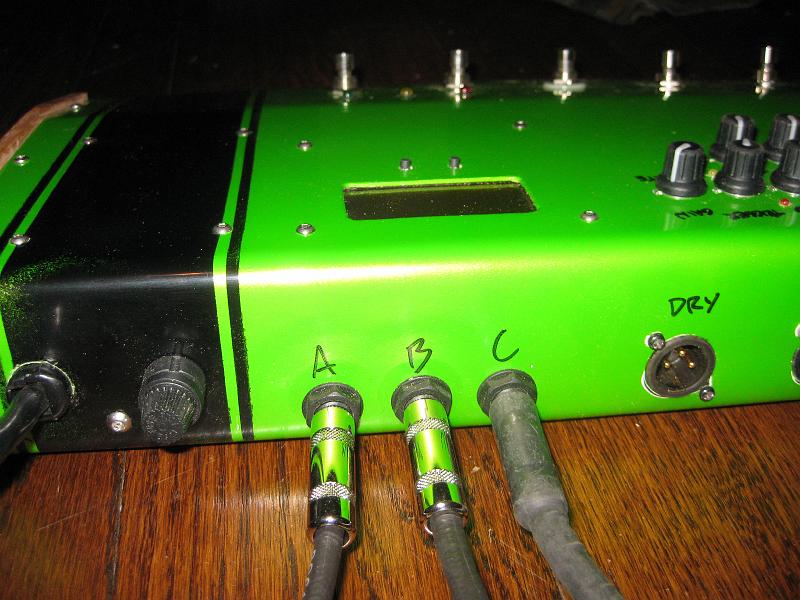

  ABCIn.JPG - Power and inputs. The power section uses dual transformers, so the pedal and output power are separate. The three inputs are wired so that when one is not in use, it sends the guitar signal through a resistor to ground to reduce noise.
Footswitches
M-80
Phase100
PrePostDI
PrePostInstAndPower

Power and inputs. The power section uses dual transformers, so the pedal and output power are separate. The three inputs are wired so that when one is not in use, it sends the guitar signal through a resistor to ground to reduce noise.
